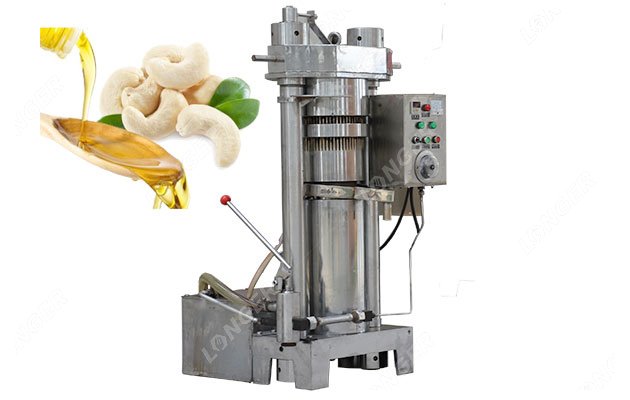

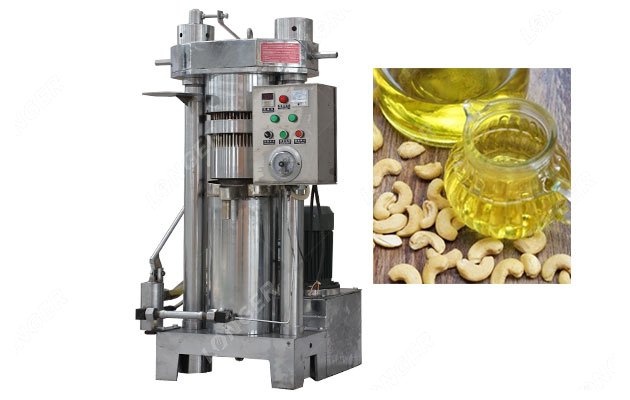

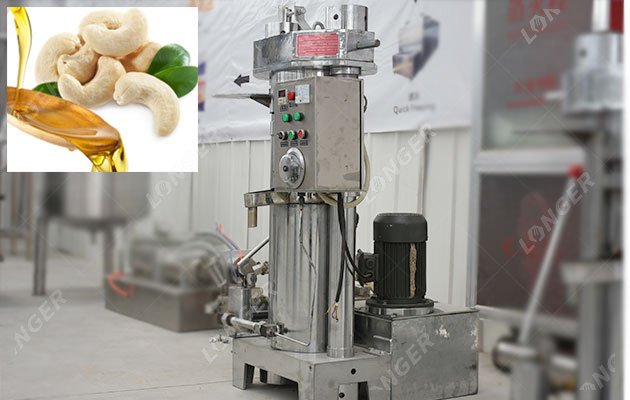

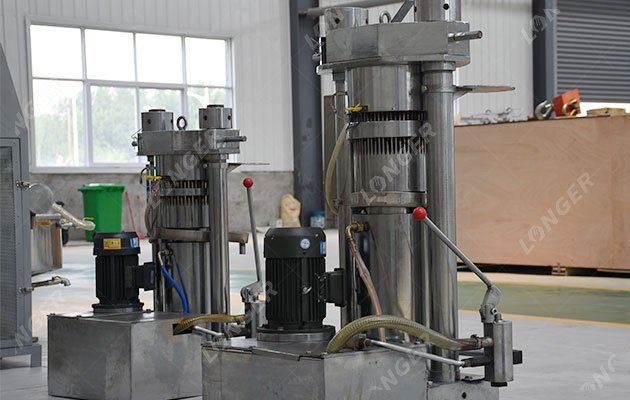

LG-ZY230 Cashew Kernel Oil Press Extraction Machine
- Capacity: 30-100 kg/h
- Loading Port: Qingdao Port
- Description: The cashew kernel oil press machine can squeeze sesame, sunflower seeds, almonds, walnuts, hemp seeds and the like. Hydraulic oil extraction machine, stable pressing, high oil output rate.
Features
The cashew oil press machine is a hydraulic oil press with fast hydraulic rise, low pressure loss and high oil yield. The oil extraction machine is suitable for processing various materials, such as coconut, olives, walnuts, almonds, hemp kernels, sesame seeds, sunflower seeds, etc.
Features of Cashew Kernel Oil Extraction Machine:
Structure of the Hydraulic Cashew Oil Extraction Machine

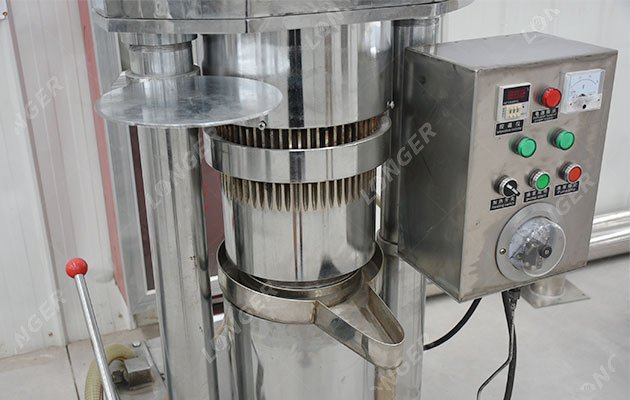

The hydraulic oil press is mainly composed of a bottom plate, an upper top plate, a column, a press boring, an oil pan, hydraulic pressure, a motor, a voltmeter, a temperature control regulator, a pressure gauge, etc.
The oil is pushed upwards by the force of the oil cylinder assembly in the squeeze boring, and the oil flows out from the oil squeeze boring seam, through the oil pan to the oil storage barrel. The new cashew kernel oil press machine has low speed, high oil pressure, high temperature resistance, simple operation and high oil output.
Features of Cashew Kernel Oil Extraction Machine:
- The material is uniformly stressed during the squeezing process, and the oil output rate is high. The oil squeezing rate can reach 90-92%, and the economic benefit is high.
- Stable pressing. The oil press machine adopts the principle of stepless propulsion and gradual pressurization, so that the pressure in the press chamber increases rapidly, and the oil is fissioned and separated at one time.
- High-efficiency precision filtration, fast and convenient. Using a variety of fine filter system devices, brand new new oil guiding technology, automatic filtration, pure oil. The oil filtering and pressing are carried out simultaneously, which greatly improves the oil filtering speed.
- Automatic control system, automatic control of preheating temperature, automatic control of hydraulic system pressure.
- High temperature resistance, can be above 65 degrees oil temperature without cooling device, more suitable for long-term continuous work.
- The cashew oil extraction machine is made of high-quality steel, and the large and small parts are chrome-plated, which is beautiful and durable.
Application of Cashew Kernel Oil Press Machine
The hydraulic oil press can realize a wide range of pressing, with one machine for multiple purposes. The squeezing speed is fast and can squeeze a wide range of oil crops.
The main processed oil crops are: sesame, walnut kernels, pine nuts, almonds, oil sunflower, perilla, flax seeds, camellia seeds, tung seeds, castor seeds and other oil crops with high oil content.
Before squeezing cashew nut oil, it needs to be roasted to increase the oil yield.
Technical Data
| Model | LG-ZY230 | LG-ZY280 | LG-ZY320 |
| Pressure | 55Mpa | 60MPa | 60MPa |
| Feeding Diameter | 230mm | 280mm | 320mm |
| Capacity(Per time) | 2-7 kg | 5-15 kg | 10-20 kg |
| Heating power | 1kw | 2kw | 3kw |
| Hydraylic Motor power | 1.5kw,380V | 2.2kw,380V | 6.4kw,380V |
| Nominal pressure | 2200KN | 3000KN | 3500KN |
| Dimension(mm) | 900*750*1400 | 900*1000*1500 | 900*1100*1650 |
| Weight | 880kg | 1500kg | 2000kg |
