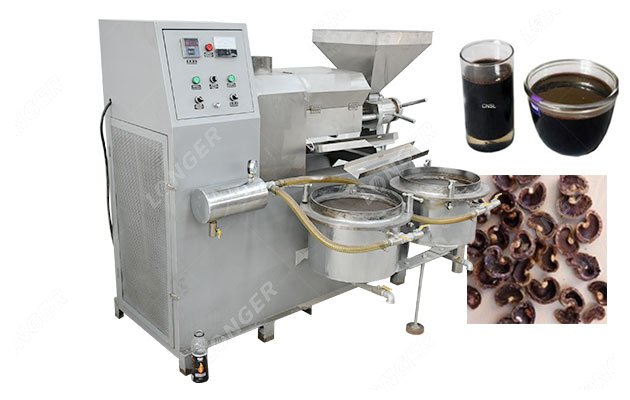

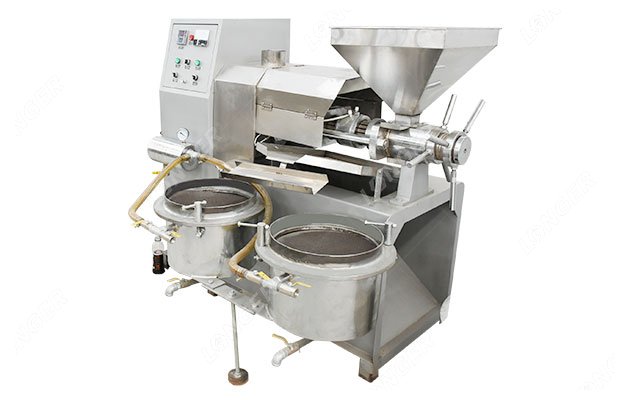

High Quality Cashew Nut Shell Oil Liquid Extraction Machine
- Capacity: 65-700 kg/h
- Loading Port: Qingdao Port
- Description: The cashew nut shell oil extraction machine has good wear resistance, corrosion resistance and high quality. The oil press can produce peanut oil, sunflower oil, castor oil, rapeseed oil, etc.
Features
The cashew nut shell oil extraction machine is a screw oil press with a small footprint, high production efficiency and high oil yield. Suitable for peanut oil, groundnut oil, rapeseed oil, sunflower oil, castor oil, pepper seed oil, etc.
Cashew Nut Shell Oil Uses

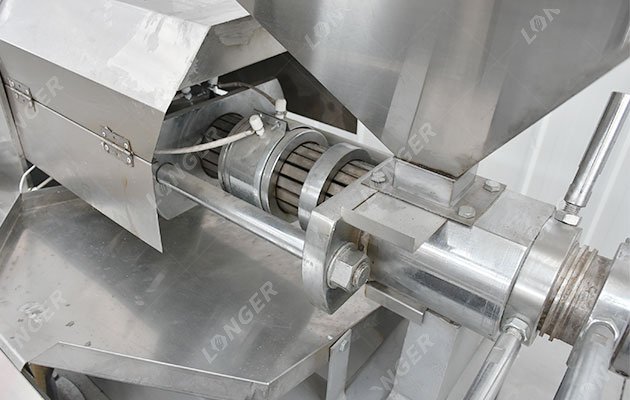

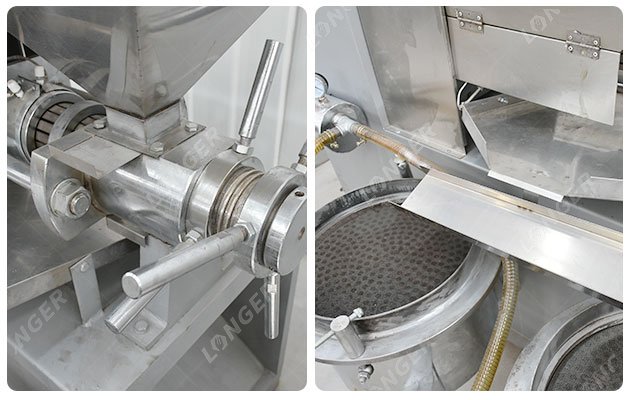

Structural Advantages of Cashew Nut Shell Liquid Extraction Machine:
The screw oil expeller is mainly composed of electrical control, automatic heating, adjustment, transmission and oil filtering.
- High oil yield. Adopting directional pressure, multi-stage propulsion, squeezing clean at once.
- The snails are made of alloy steel with carburizing treatment to enhance the surface hardness and wear resistance;
- The pressing row is ground by a surface grinder to ensure the accuracy of the oil line and increase the oil yield;
- Standard components such as power distribution, vacuum and automatic heating are selected from well-known domestic brands to optimize machine configuration;
- The surface of the machine is treated with stainless steel and chrome plating, which meets food hygiene standards.
Cashew Nut Shell Oil Extraction Process
- Adopting the principle of multi-stage propulsion and gradual pressurization, the pressure in the press chamber increases rapidly, and the materials are fissioned and separated at one time.
- The infrared temperature control system is used to automatically control the pressing temperature and moisture, so that the oil can directly soften and activate the oil molecules.
The squeezing is stable, and it is exhausted at one time, which greatly improves the oil yield.
Application of Screw Cashew Nut Shell Oil Extraction Machine
The oil press can be used for multiple purposes, processing more than 20 kinds of oils such as sesame, peanut, castor bean, sunflower seed, rapeseed, tea seed, soybean, flax, cottonseed and so on.
Cashew Nut Shell Oil Uses
The main component of cashew nut shell oil is cardanol, which has a special chemical structure and can be used as a variety of industrial raw materials.
Cashew nut shell liquid is widely used in transportation vehicles, machine tools, ships, wood furniture, home decoration, metal and plastic products, chemical equipment and various pipeline anti-corrosion.
Technical Data
| Model | LG-ZX80 | LG-ZX100 | LG-ZX120 | LG-ZX130 | LG-ZX165 |
| Screw Dia. | φ80mm | φ100mm | φ120mm | φ130mm | φ165mm |
| Spiral Speed | 47r/min | 38r/min | 37r/min | 32r/min | 32r/min |
| Power | 5.5KW | 7.5KW | 11-15KW | 15-18.5KW | 30KW |
| Vacuum Pump | 0.75KW | 1.5KW | 1.5KW | 1.5KW | 2.2KW |
| Heater | 2.2KW | 2.2KW | 3.0KW | 3.0KW | 3.0KW |
| Capacity | 65-130Kg/h | 140-200Kg/h | 200-300Kg/h | 300-500Kg/h | 500-700Kg/h |
| Weight | 880Kg | 1250Kg | 1500Kg | 1800Kg | 2500Kg |
| Size | 1500*1300*1550mm | 1700*1300*1650mm | 2050*1300*1800mm | 2100*1300*1800mm | 2620*1350*1900mm |
