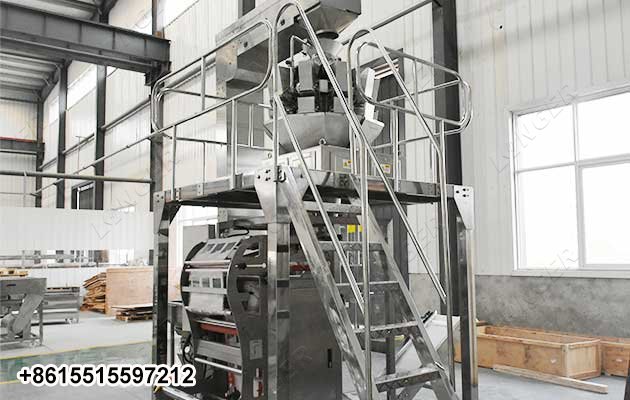

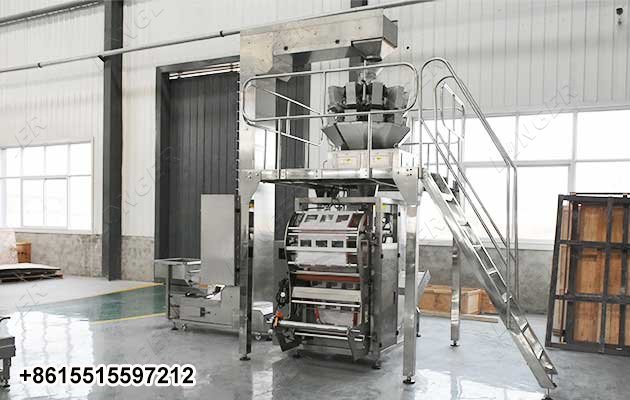

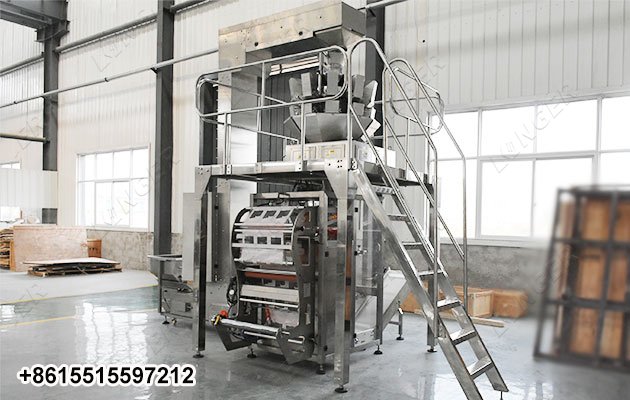

High Precision Cashew Nuts Pouch Packing Machine Price LG-LK
- Capacity: 10-50 Bags/min
- Loading Port: Qingdao Port
- Description: The cashew nuts packing machine adopts PLC computer control system, high precision, high speed, stable operation and simple operation.
Features
The cashew nuts packing machine can complete the complete process of automatic bag making, metering, filling, sealing, printing, and finished product output. High precision and high degree of intelligence.
The main structure of the cashew nut packaging machine:
Contains six pieces:
①LK720 automatic vertical packaging machine

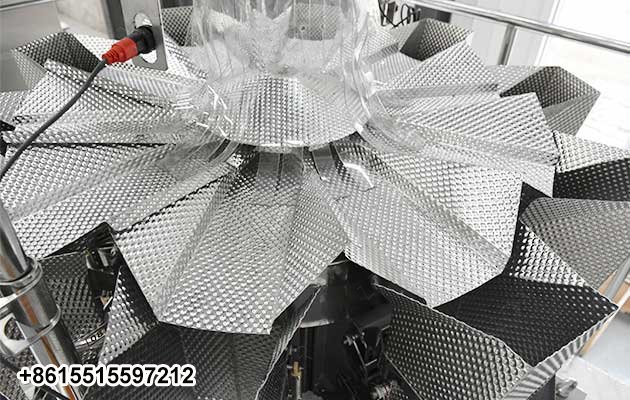

②10 head computer combination weigher
③Support platform
④Z type material conveyor (with vibration device)
⑤ Finished product conveyor
Technical Features of Cashew Nuts Pouch Packing Machine:
- Touch screen display, intuitive and simple operation.
- The PLC computer control system is more stable and can adjust any parameters without stopping the machine.

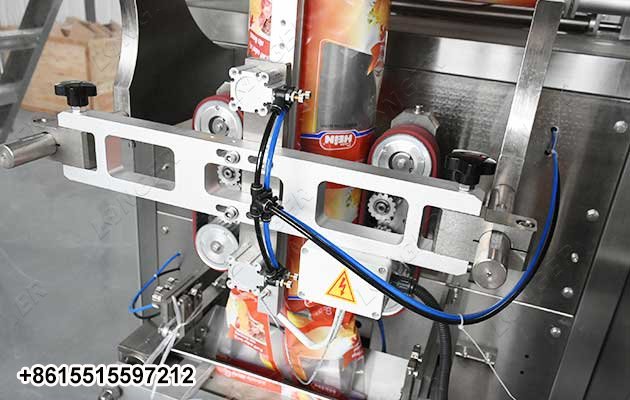

- The servo motor is used for drawing, the positioning is more accurate.
- Independent temperature control system, the accuracy can reach ±1C degree.
- The horizontal and vertical sealing temperature are independently controlled, which can be well applied to various packaging materials such as composite film and PE film.
- The packaging styles are diversified, such as back seal, gusset, four-side hot, four-side seal, standing bag, continuous bag, punching, etc.
Application of Cashew Nuts Packing Machine Price:
This machine is suitable for the packaging of bulk objects that require high measurement accuracy and fragile. For example, melon seeds, peanuts, almonds, pistachios, dried fruits, walnuts, dates, raisins, grains, soybeans, pharmaceuticals, chemicals, grains, etc.
Technical Data
| Model | LG-ZLC720D |
| Film width | max 720mm |
| Bag width | 110-350mm |
| Bag length | 100-420mm |
| Packing speed | 10-50bags/min |
| Packing range | 150-4000ml |
| Film thickness | 0.04-0.10mm |
| Power | 4kw/220v 50-60Hz |
| Machine size | 1780*1350*2000mm |
| Machine weight | 800kg |
| Air consumption | 0.8m³/min 0.8mpa |
