PLC Control Cashew Nut Tin Packing and Sealing Machine
- Capacity: 70 p/min
- Loading Port: Qingdao Port
- Description: The cashew tin packing and sealing machine adopts PLC control system to realize automatic and digital production. The packaging machine can pack all kinds of nuts with high precision.
Features

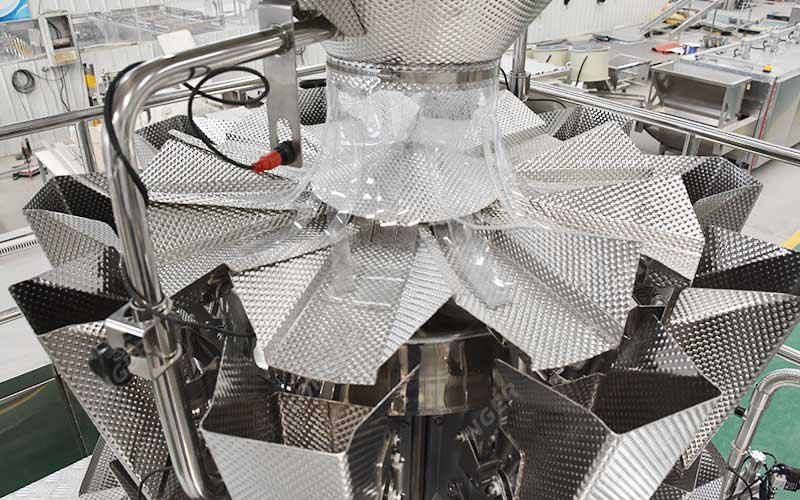

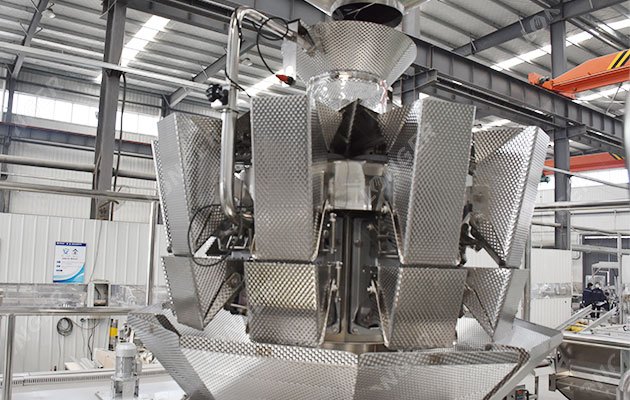

This set of cashew nut tin packing machine adopts computerized combination weigher, high precision and high speed, and realizes automatic packaging and sealing. The machine is also equipped with an imported PLC full computer control system, which can record production data, making production more efficient and intuitive and convenient to operate.
Advantages of Automatic Cashew Tin Packing Machine
- Accurate measurement: high-precision digital weighing sensor is adopted.
- PLC control system, high packaging speed and high precision.
- Powerful automatic data statistics function, records the total number of packages, qualified rate and single bag error of each batch of production.
- Multi-language LCD display operating system: generally with 5 languages, Chinese, English, French, Arabic, Spanish.
- All parts are made of stainless steel, clean and hygienic.
Features of Automatic Cashew Tin Sealing Machine
Application Range of Cashew Tin Packing and Sealing Machine:
- Automatic tank feeding: it can be connected with the assembly line to automatically feed the tank.
- Automatic cover release: automatically complete the cover release action.
- Automatic detection: photoelectric detection of the completion of cover placement.
- Automatic can sealing: automatically complete the can sealing procedure, no can without sealing.
- Automatic can discharging: After sealing the can, it will automatically return to the conveyor belt and enter the next process.
Application Range of Cashew Tin Packing and Sealing Machine:
This machine is suitable for quantitative weighing of various granular materials and then packaging them in the can. Including materials: candy, chocolate, melon seeds, pistachios, peanuts, cashews, potato chips, puffed food, jelly, biscuits, pet food and other granular, flake, strip, irregular shape materials.
Technical Data
| Model | LG-A10-1.6 | LG-A10-2.5 | LG-A10-5.0 |
| Voltage | AC110/220V | AC110/220V | AC110/220V |
| Power frequency | 50/60HZ | 50/60HZ | 50/60HZ |
| Rated current | 8A | 8A | 8A |
| Power | 1.5KW | 1.5KW | 1.5KW |
| Weighing heads | 10 | 10 | 10 |
| Weighing range | 3-6500g | 3-6500g | 50-6500g |
| Single weighing range | 10-1000g | 10-1000g | 10-1000g |
| Weighing volume | 1600ml | 2500ml | 5000ml |
| Max weighing speed | 70p/min | 70p/min | 70p/min |
| Preset number | 100 | 100 | 100 |
| Machine length | 1050mm | 1050mm | 1050mm |
| Machine width | 900mm | 900mm | 900mm |
| Machine height | 1330mm | 1330mm | 1330mm |
| Machine weight | 330KG | 330KG | 330KG |
| Monitor | 9.2inch | 9.2inch | 9.2inch |
| Precision | ±0.3-3g | ±0.3-3g | ±1-5g |
