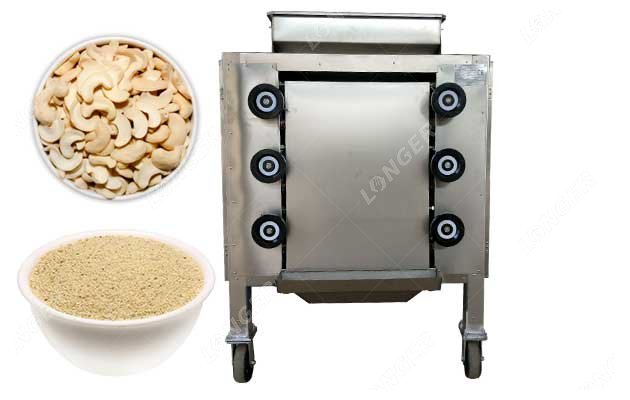

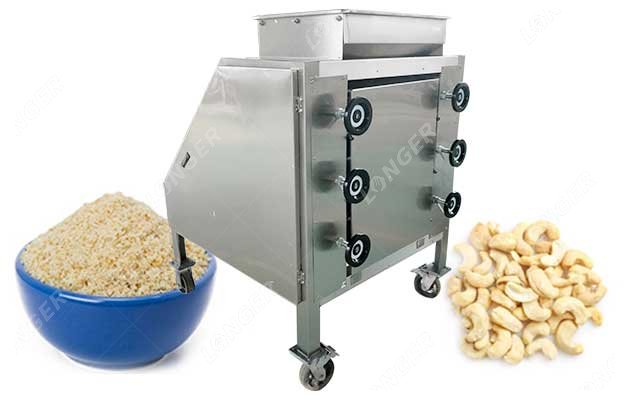

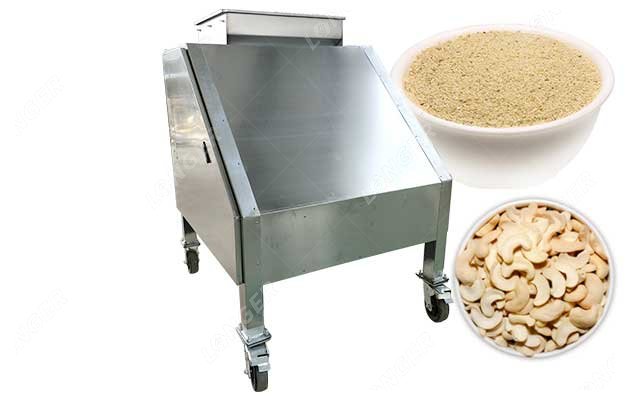

3KW Cashew Powder Making Machine | Nut Milling Machine
- Capacity: 200-400 kg/h
- Loading Port: Qingdao Port
- Description: The cashew nut powder making machine is a special nut milling machine, the powder fineness is adjustable between 40-60 mesh. The machine can also grind peanuts, almonds, walnuts, sesame, etc.
Features
The cashew powder making machine can grind various nuts into powder or granules, and the final powder particle size can reach 60 meshes (adjustable). Suitable for grinding peanuts, almonds, walnuts, etc. and some dried fruits.
Features of Automatic Cashew Nut Milling Machine
- Nuts can be powdered at one time and are less greasy.
- It is made of stainless steel to ensure that the nut is hygienic. And easy to clean and maintain.
- High Yield. The special cutter design makes the material crush faster.
- Multifunctional, it can grind nut powder or make nut particles.
- The operation is simple and easy to use.
Product Application:
This milling machine is suitable for high-oil materials such as soybeans, sesame, peanuts, almonds, cashews, and walnuts. Low-oil materials such as rice, grains and yellow mealworms.
Working Principle of Cashew Powder Making Machine
The machine contains three pairs of rollers, two rollers for chopping and one roller for grinding. The nuts pass through two sets of rollers in sequence, and the particles gradually become smaller. Finally, it passes through the third set of grinding rollers and squeezes into powder.
The gap of the knife roller can be adjusted to adjust the fineness of the powder.
Operation Point of Cashew Powder Milling Machine
1. Check whether the line is normal before starting up. Check whether the rotating parts are loose or abnormal.
2. By adjusting the gap of the insert plate, the material can be evenly scattered between the pair of rollers. Control uniform synchronization.
3. Change the gap between the rollers by adjusting the handles on both sides of the rollers. So as to achieve the control of the particle size.
Technical Data
| Model | LG-SF2 |
| Fineness of Powder | 40-60 mesh |
| Power | 3 kw |
| Voltage | 380V, 50HZ |
| Capacity | 200-600 kg/h |
| Dimension | 1200*1000*1550mm |
| Weight | 380kg |
